EMS SOLUTIONS
Microgrid EMS
Microgrid EMS for PV, storage, diesel, grid, and loads
For parks, islands, mines, and critical-load supply, managing on/off-grid switching, multi-energy coordination, generator support, and load priority.
EMS SOLUTION
Solution Overview
EMS SOLUTION
Customer Pain Points
Multi-energy strategy is complex
PV, storage, diesel generators, and utility grid can all affect operating targets.
Grid-connected and islanded goals differ
Grid mode emphasizes economy and consumption, while islanded mode emphasizes reliability and SOC boundaries.
Critical loads need priority
Hospitals, mines, and island sites require clear critical and normal load priorities.
Diesel generator operation is costly
Generator start/stop should be reviewed against load and storage status.
PV fluctuations need balancing
Storage or generators may be needed to balance PV output and load changes.
Islanded operation requires continuous monitoring
Power sources, loads, SOC, and alarms need close tracking when isolated.
EMS SOLUTION
Solution Description
Microgrid EMS connects PV, storage, diesel generators, utility grid, grid switches, critical loads, normal loads, meters, PCS, BMS, and inverters for multi-energy operation.
Control goals differ by mode: grid-connected operation focuses on cost and PV consumption, while islanded operation focuses on critical-load supply, generator support, and SOC boundaries.
Microgrid energy flow, load priority, generator records, and islanded-state monitoring help operators balance cost, reliability, and safety.
EMS SOLUTION
System Architecture
DEV
01Device Layer
Field devices, metering, thermal, and protection units are connected.
PVStorageDiesel GeneratorUtility GridCritical LoadsNormal LoadsGrid/Island Switch
NET
02Communication Layer
Industrial protocols collect data and deliver control commands.
Modbus TCPCANDry contact / DIEthernet / 4G
EMS
03Platform Layer
Acquisition, strategy, alarms, reports, and station logic are unified.
Multi-energy acquisitionGrid/island statusLoad priorityGenerator recordsMicrogrid strategy
APP
04Application Layer
Business views are provided for owners, operators, and O&M teams.
Microgrid energy flowCritical-load supplyGenerator supportIslanded monitoringStrategy review
EMS SOLUTION
Core Features
Multi-energy flow monitoring
Show power flow among PV, storage, diesel, utility grid, and loads.
On/off-grid state management
Monitor grid switch, utility status, and islanded operating state.
Critical-load priority
Separate critical and normal loads to support islanded load management.
Generator start/stop support
Record generator operation against load, SOC, and system state.
Storage SOC boundary monitoring
Focus on storage energy and protection boundaries during islanded operation.
PV-storage coordination
Use storage to balance PV fluctuation and load changes where applicable.
Microgrid strategy records
Record strategy changes for grid mode, island mode, generator, storage, and loads.
Islanded operation alarms
Highlight power-source, load, and device abnormalities during islanded operation.
EMS SOLUTION
Solution Highlights
Includes diesel generators, utility grid, and load priority
Organizes device access, strategy execution, and operation review around Includes diesel generators, utility grid, and load priority.
Separates grid-connected and islanded operating targets
Organizes device access, strategy execution, and operation review around Separates grid-connected and islanded operating targets.
Organizes the page around critical-load supply
Organizes device access, strategy execution, and operation review around Organizes the page around critical-load supply.
Fits islands, mines, parks, and campus microgrids
Organizes device access, strategy execution, and operation review around Fits islands, mines, parks, and campus microgrids.
Energy flow is broader than a PV-storage system
Organizes device access, strategy execution, and operation review around Energy flow is broader than a PV-storage system.
Supports strategy and islanded-state review
Organizes device access, strategy execution, and operation review around Supports strategy and islanded-state review.
EMS SOLUTION
Application Scenarios

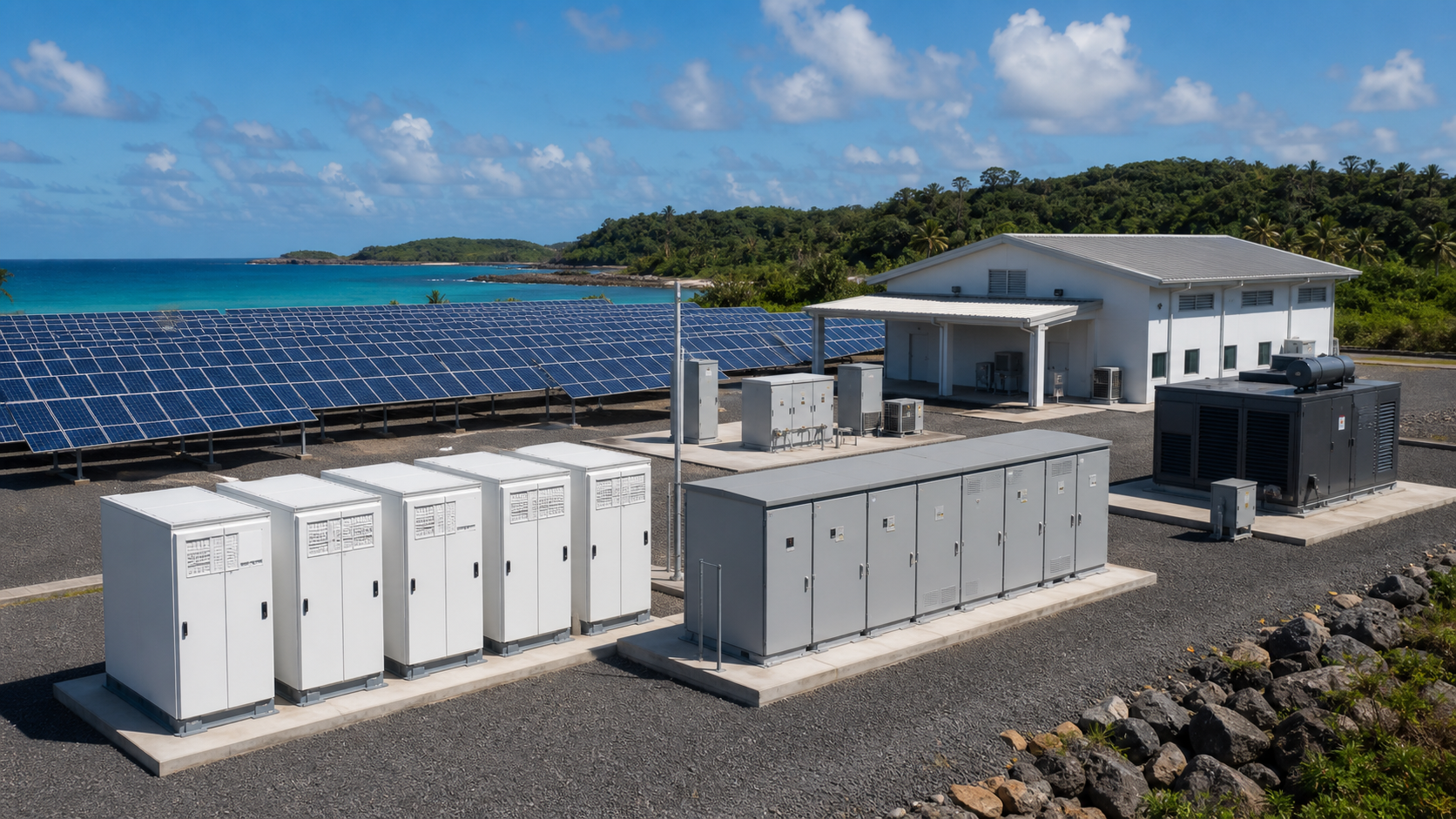

Park Microgrid
Shows PV, storage, utility grid, and load flow for park-level operation.
Island or Remote Power
Tracks islanded state, generator support, and storage SOC boundaries.
Critical Load Supply
Separates critical and normal loads during grid and islanded operation.
EMS SOLUTION
Implementation Benefits
Help operators watch critical loads, power sources, and islanded boundaries.
Use load, SOC, and PV records to support generator start/stop review.
Bring PV, storage, diesel, grid, and loads into one microgrid view.
Keep power-source, load, and alarm states visible during isolated operation.
Retain records for grid/island switching, generator, storage, and load strategies.
Provide operating evidence for different targets in grid-connected and islanded modes.
